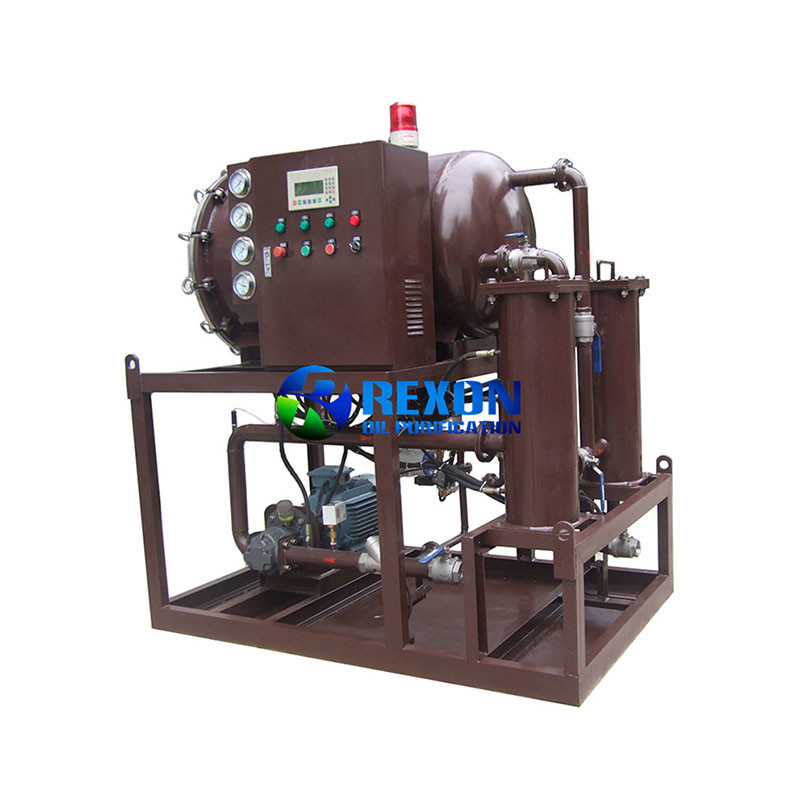

Fast Dehydrator & Coalescing Separation Oil Purifier TYB-100(6000LPH)

Application

Fast Dehydrator & Coalescing Separation Oil Purifier TYB-100(6000LPH) is used to remove free water and solid particles from low-viscosity oils, such as light fuel oil, turbine oil, diesel oil, etc. It utilizes the effects of inertial separation and surface tension to effectively separate and aggregate tiny particles, water droplets and other impurities, and are eventually captured on the filter element to achieve the purpose of filtering and purifying liquids. Compared with vacuum-type oil purifiers, this TYB oil purifier can dehydrate much faster and without heating, especially suited for high water content oil dehydration and filtration treatment.

Advantages

1. TYB series coalescing separation oil purifier uses advanced coalescing-separation filter element, water separator, and high precise degree fine filter together in an integrated system to make a high efficient oil demulsification and oil dehydration function, which can remove large of water and particles without heating, creates the fastest dehydration speed, and clean the oil by multistage filtration.

2. Fully automatic water discharging. This purifier in controlled by PLC system, the water removed from the oil will be discharged from the water tank fully automatically.

3. It is equipped with 4 castors, very convenient for movement.

4. It’s easy and simple to move and operate the machine.

Technical Parameters
