Enclosed Mobile Transformer Oil Purifier Machine ZYD-WM-150(9000LPH)
  • Enclosed Mobile Transformer Oil Purifier Machine ZYD-WM-150(9000LPH)
  • Enclosed Mobile Transformer Oil Purifier Machine ZYD-WM-150(9000LPH)
  • Enclosed Mobile Transformer Oil Purifier Machine ZYD-WM-150(9000LPH)

Enclosed Mobile Transformer Oil Purifier Machine ZYD-WM-150(9000LPH)

Place of Origin China
Brand Name REXON
Certification CE, ISO, SGS, CCC
Model Number ZYD-WM-150
Product Details
Transformer Oil Filtration
Flow Rate:
9000 L/H
Power Supply:
3Phase, 380VAC, 50Hz Or As Required
Vacuum Type:
Double Stages
Ultimate Vacuum:
3~5 Pa
Working Vacuum:
0.08 ~-0.099 Mpa
Electric Heating Power:
135 KW
Total Power:
149 KW
Working Temperature:
20~80 ℃
Filter Elements:
Three Stages
Filtration Fineness:
1 Micron
Oil Water Content:
Gas Content:
Control Mode:
Fully Automatic PLC Programming With Touch Screen
Optional Items:
Online Moisture Tester, Flowmeter, Etc.
Product Description

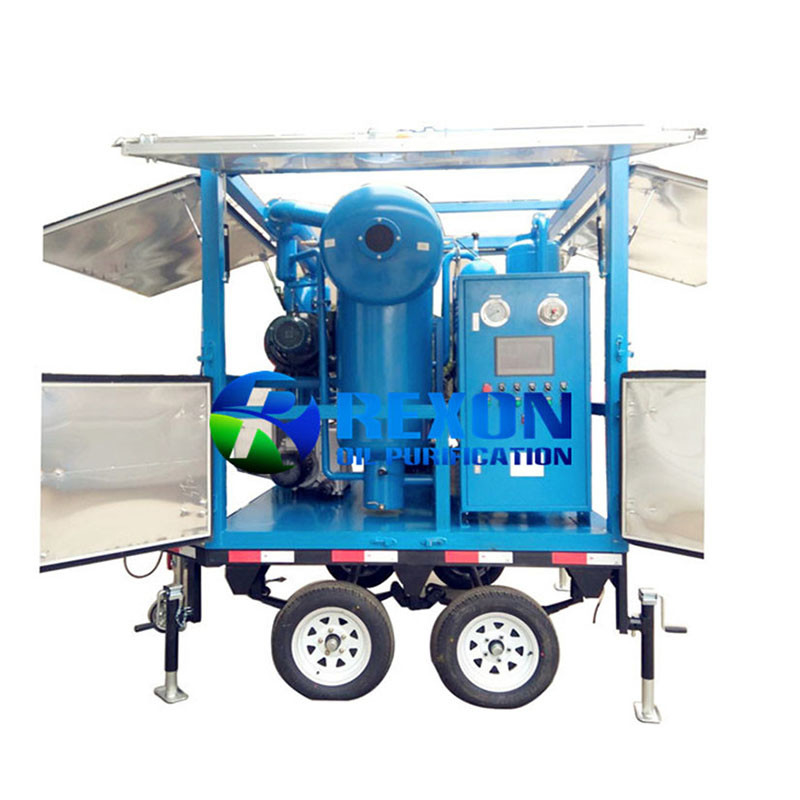

Rexon enclosed and mobile type transformer oil purifier machine ZYD-WM-150(9000LPH) takes aluminium alloy material as the full enclosure, and uses strong structure trailer with 4 big car wheels to equip with. The same functions with ZYD transformer oil purification plant, it can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from insulating oil effectively to improve oil's dielectric strength to be above 75~85KV. It is suitable for on-site transformer oil purification and oil maintenance for different places. Besides this, this system can also vacuuming transformers and oil injecting transformers.

1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture and gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-stereo film evaporation technology, combined with unique and advanced dewatering, and degassing components, can rapidly and effectively separate water, and gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil highly efficiently and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system, and foaming elimination system to ensure the machine operates easily and safely.
7. Adopt an interlocked protective system, which connects the oil pump, heater, and liquid level sensor, avoiding blank heating, blank pumping, oil leaks, and electricity leaks. If there is any fault, the machine will be powered off automatically.
8. It can be operated both online and offline by transformers.
9. Can be used independent device for vacuuming transformers that are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, highly reliable and long time running.
11. PLC programming control system and touch screen to achieve machine working fully automatically.

12. Mobile trailer and weather-proof enclosure design, easy to move, and protect the machine in good condition.

The mobile trailer design allows for easy transportation and on-site operation. This flexibility enables users to conveniently move the equipment to different locations as per their requirements. It is particularly beneficial for maintenance and emergency oil filtration tasks. Further more,
since it is completely waterproof, dust dustproof, it can protect the machine not to being damaged by rain weather, or in other bad circumstances. So you can use the machine in any weather and many circumstances for any on-site oil filtration project.


Technical Parameters

Parameters Unit ZYD-30 ZYD-50 ZYD-100 ZYD-150 ZYD-200 ZYD-250 ZYD-300
Flow Rate L/H 1800 3000 6000 9000 12000 15000 18000
Working Vacuum Mpa -0.08 ~-0.099
Working Pressure Mpa ≤ 0.3
Temp Range 20 ~80
Power Supply   380V, 50Hz, 3Phase( As per required)
Working Noise Db 60 - 80 (Depending on the configuration)
Heating Power KW 30 60 90 135 150 165 180
Total Power KW 35 67.5 101.5 149 164 179 198
Inlet/Outlet Diam MM 25 32 42 50 50 60 60
Weight KG 450 550 900 1150 1450 1850 2000
Size Length MM 1500 1570 1730 1920 1990 2050 2150
Width MM 1450 1520 1620 1820 2070 2120 2200
Height MM 1520 1560 1760 1970 2020 2100 2190
Dielectric Strength KV ≥ 75-85
Water Content PPM ≤ 3
Gas Content % ≤ 0.1
Particle Size μ ≤ 1
Cleanliness ≤NAS 1638 Grade 5
