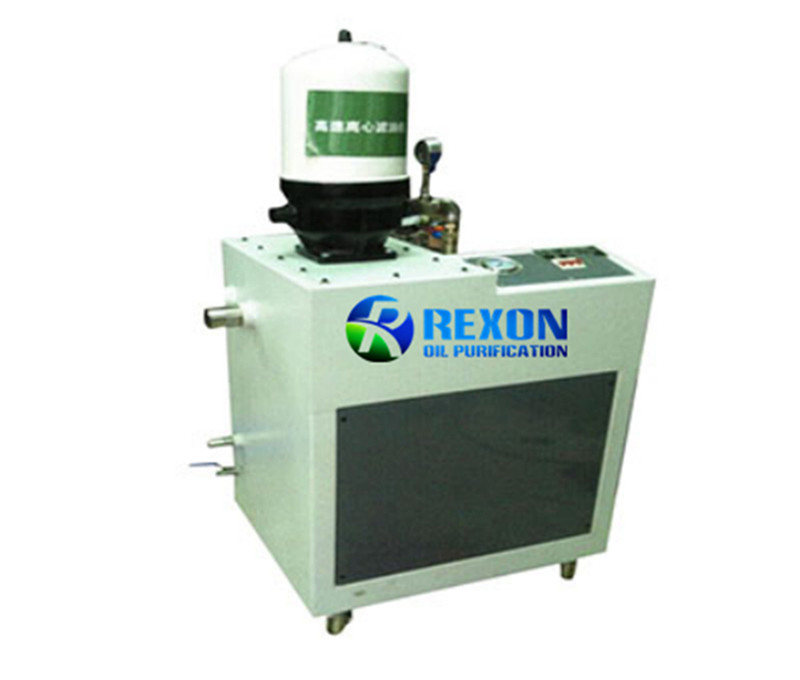

Rexon Centrifugal Rotary Oil Purifier FM Series
  • Rexon Centrifugal Rotary Oil Purifier FM Series
  • Rexon Centrifugal Rotary Oil Purifier FM Series
  • Rexon Centrifugal Rotary Oil Purifier FM Series

Rexon Centrifugal Rotary Oil Purifier FM Series

Place of Origin China
Brand Name REXON
Certification CE, ISO, SGS, CCC
Model Number FM Series
Product Details
Application:
Industrial Oils' Particles Removing
Capacity:
4500~6000 L/H
Speed:
5000~6000rpm
Power Supply:
380V, 3Phase, 50HZ Or As Required
Operation Mode:
Manual
Weight:
96~108 KGS
Material:
Carbon Steel
Colour:
White, Blue, Etc.
Warranty:
2 Years
Product Description

Application

Rexon FM centrifuge rotary oil purifier can be widely used in the maintenance and purification of various industrial oils including: cutting oil, hydraulic oil, lubricating oil, engine oil, pumping oil, hot kerosene, quenching oil, forging oil, steam turbine oil, anti-rust oil, gear oil, hydraulic transmission oil, cooling oil, cylinder oil, rolling oil, circulating oil, locomotive special oil,heavy oil, compressor oil, cleaning oil, heat transfer oil, etc.



Features

Extend the service life of machinery
Online operation, no need for special care.
Extended oil change interval to save costs
The structure is simple, the maintenance is convenient, and the service life is long, without any consumables. Can remove 0.26um particle impurities.
No filter element, no consumables or replacement parts, just regular cleaning.
Thereby greatly reducing the use and maintenance costs.
It can remove solid impurities in high-viscosity oil and highly polluted oil.
Change the original traditional filtration method to remove the fine particles and sludge suspended in the oil in the machine.
Extend the service life of machinery and equipment, reduce wear and parts replacement.
All the key parts are imported components to ensure stable operation.



Technical Parameters

Model FM600 FM400
Capacity(L/Hr) 6000 4500
Oil inlet caliber(mm) 25.4 25.4
Storage Volume(cm3) 6530 4160
Centrifugal speed (rpm) Above 6000 Above 5000
Power(kw) 2.2 1.5
Dimension(mm) 665*535*1075 625*445*1230
Weight(kgs) 108 96
