Online Oil Particle and Moisture Counter for Oil Cleanliness Detection
  • Online Oil Particle and Moisture Counter for Oil Cleanliness Detection

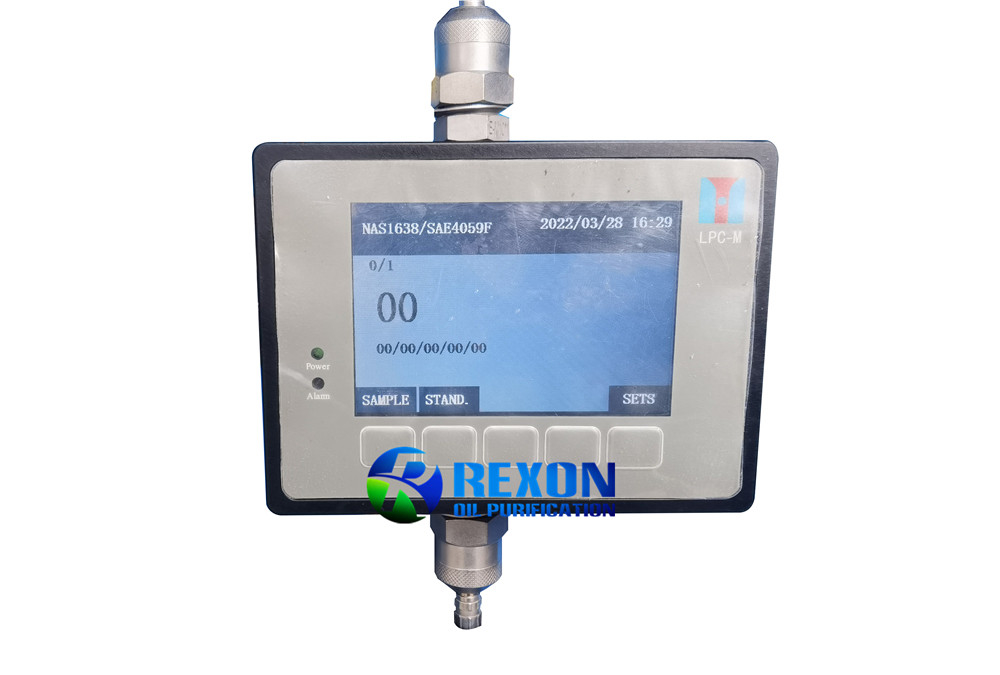

Online Oil Particle and Moisture Counter for Oil Cleanliness Detection

Place of Origin China
Brand Name REXON
Certification CE, ISO, SGS, CCC
Model Number LPC-M
Product Details
Function:
Online Oil Cleanliness Detection
Flow Rate Range:
10-500mL/min
Particle Size Range:
1-600μm
Test Sample Viscosity:
≤350cSt
Test Sample Temperature:
0-80℃
Protection Level:
IP56
Power Supply:
AC 220V±10%, 50/60Hz
Weight:
1.1 KG
Volume:
115×85×60mm
Product Description

Description

The LPC-M on-line particle counter adopts the counting principle of the photoresistance (shading) method specified by the International Hydraulic Standards Committee, and is specially used for on-site online measurement and oil pollution level detection device. It has the advantages of small size, light weight, fast detection speed, high precision, good repeatability, etc., and can work under severe conditions such as high temperature and high pressure.

It is suitable for testing of engine oil, gear oil, transformer oil (insulating oil), hydraulic oil, lubricating oil, synthetic oil, water-based (water-based hydraulic oil, water glycol, etc.), alcohols, ketones, etc. And can be widely used in aerospace, petrochemicals, transportation ports, iron and steel metallurgy, automobile manufacturing and other fields.



Features

1. Adopting the principle of photoresist (shading) method, using high-precision laser sensor, small size, high precision and stable performance
2. Suitable for on-site on-line detection, real-time monitoring of particle pollution in the oil system
3. Built-in data analysis system can display the real data of each channel particle size and automatically determine the sample level
4. The standard model can directly withstand pressure of 100 kg, and can be equipped with a pressure reducing valve for 400 kg high pressure measurement
5. With volume flushing and duration flushing modes, it is convenient for users to use and maintain the equipment
6. Built-in ISO4406, NAS1638, SAE4059, GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle pollution level standards, one test can give all built-in standard results
7. Built-in calibration function, which can be calibrated according to GB/T21540, ISO4402, ISO11171, GB/T18854 and other standards
8. All standard and arbitrary alarm levels can be independently set to achieve pollution or cleanliness detection
9. RS232 or RS485 interface, support standard modbus protocol, can connect to computer, upper computer, printer, PLC system or other equipment for data monitoring and processing
10. Large storage, can be stored in the instrument internal or external USB storage device
11. Robust appearance structure, suitable for complex working environment
12. The position of the dual oil outlets can be selected up and down for easy installation. The bottom-in and top-out mode is helpful to minimize the interference of online air bubbles on the test results
13. Continuous test can also be set arbitrarily test interval
14. The instrument interface can freely control the switch of the remote printer
15. English system, suitable for export

16. Touch screen operation or membrane buttons, customers can switch freely
17. Optional 4G module to support remote data monitoring, historical data, curve query on mobile phone or computer (optional)
18. Optional built-in moisture and temperature sensor module, can output four kinds of parameter information at the same time (optional)
