Old Transformer Oil Fuller Earth Regeneration Plant ZYD-II-50(3000LPH)
  • Old Transformer Oil Fuller Earth Regeneration Plant ZYD-II-50(3000LPH)
  • Old Transformer Oil Fuller Earth Regeneration Plant ZYD-II-50(3000LPH)
  • Old Transformer Oil Fuller Earth Regeneration Plant ZYD-II-50(3000LPH)
  • Old Transformer Oil Fuller Earth Regeneration Plant ZYD-II-50(3000LPH)

Old Transformer Oil Fuller Earth Regeneration Plant ZYD-II-50(3000LPH)

Place of Origin China
Brand Name REXON
Certification CE, ISO, SGS, CCC
Model Number ZYD-II-50(3000L/H)
Product Details
Function:
Transformer Oil Regeneration
Flow Rate:
3000 L/H
Breakdown Voltage (Dielectric Strength):
≥75 KV-85 KV
Acid Content:
≤0.01 Mg KoH/g
Gas Content:
≤0.1%
Oil Water Content:
3 PPM
Filter Elements:
Three Stages
Filtration Fineness:
1 Micron
Fuller Earth Regeneration Filter:
2 Sets
Vacuum Type:
Double Stages
Ultimate Vacuum:
3~5 Pa
Working Vacuum:
0.08 ~-0.099 Mpa
Electric Heating Power:
60 KW
Total Power:
67.5 KW
Working Temperature:
20~80 ℃
Power Supply:
3Phase, 380VAC, 50Hz Or As Required
Material:
Carbon Steel
Color:
Black, Blue, Grey, White, Yellow Etc.
Product Description

Application

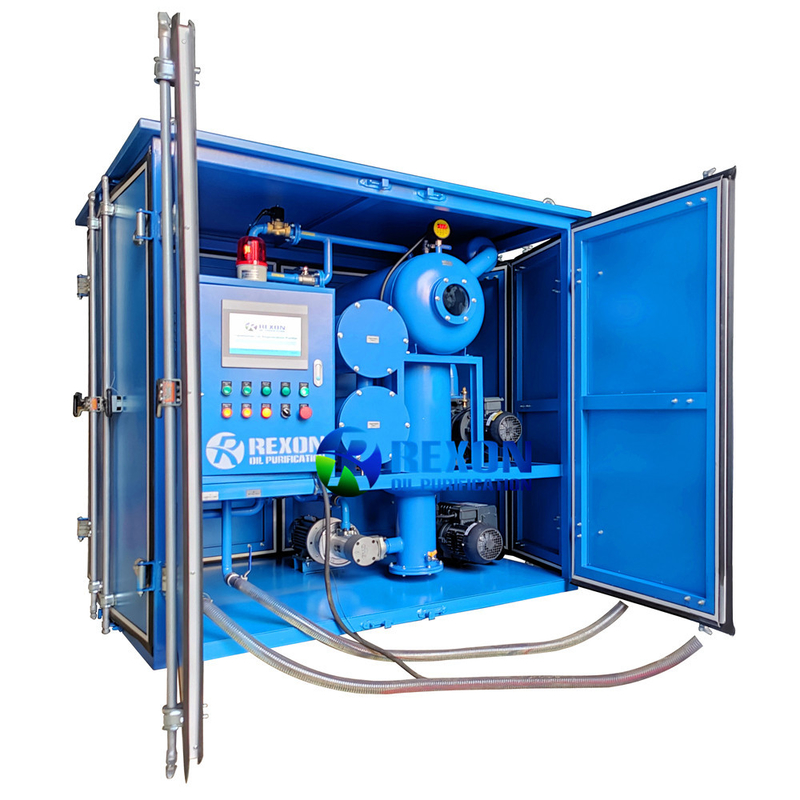

Rexon Old Transformer Oil Fuller Earth Regeneration Plant is a high vacuum oil dehydration, oil degassing and oil filtration system combined with a high efficient oil regeneration device which contains sufficient fuller's earth for oil regeneration process. This oil regeneration system is especially applied to regenerate used and aging transformer oil, insulating oil. Series ZYD-II system can deal with not only low voltage oil, but also high voltage oil like 110KV, 500KV, 1000KV. It can perform a perfect and super high efficient oil purification, oil filtration and oil recycling process to old transformer oil. The high-quality weather-proof enclosure will protect the machine in clean & dry condition, it is very suitable for onsite projects use.


Features
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.

2. Oil Regeneration Devices for oil color, acid and oil smell reconditioning.
3. Big capacity of moisture and gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
4. Duplex-stereo film evaporation technology, combined with unique and advanced dewatering, and degassing components, can rapidly and effectively separate water, and gas from oil.
5. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil highly efficiently and make oil highly pure.
6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7. Double-infrared liquid level sensor, pressure protective system, and foaming elimination system to ensure the machine operates easily and safely.
8. Adopt an interlocked protective system, which connects the oil pump, heater, and liquid level sensor, avoiding blank heating, blank pumping, oil leaks, and electricity leaks. If there is any fault, the machine will be powered off automatically.
9. It can be operated both online and offline by transformers.
10. Can be used independent device for vacuuming transformers that are above 110KV and can vacuum oil filling for power equipment.
11. Can work online for 150 hours continuously, highly reliable and long time running.
12. PLC programming control system and touch screen to achieve machine working fully automatically.

13. Mobile trailer and weather-proof enclosure are available for option.


Advantages
Besides the oil purification and oil regeneration treatment to used transformer oil on-site, ZYD-II Old Transformer Oil Fuller Earth Regeneration Plant can be used as an independent powerful vacuum producer to supply vacuum to transformers, making transformer vacuum evacuation, oil injection to transformer very high efficient. So one system equals to three system which can do all above jobs, and achieve a successful and high efficient on-site transformer oil and transformer maintaining purpose.



Technical Parameters

Parameters

Model

Unit

ZYD-II

-30

ZYD-II

-50

ZYD-II

-80

ZYD–II

-100

ZYD-II

-150

ZYD-II

-200

ZYD-II

-250

ZYD-II

-300

Flow Rate L/hr 1800 3000 4800 6000 9000 12000 15000 18000
Working Vacuum MPa -0.08 ~ -0.099
Working Pressure MPa ≤ 0.3
Temperature Control Range 20 ~ 80
Operation Temperature 50 ~ 70(55~60 is best)
Power Supply   380V, 3 Phase, 50Hz (or as per requirements)
Working hours without Trouble Hour 4000
Continuous Working Hours Hour 200
Working Noise dB(A) 75 75 75 75 80 80 80 80
Heating Power KW 30 60 75 90 135 150 165 180
Total Power KW 35 67.5 83 101.5 149 164 179 198
Inlet/Outlet mm φ25 φ32 φ38 φ42 φ50 φ50 φ60 φ60
Weight Kg 550 650 900 1000 1250 1550 1700 2050
Overall Length mm 1550 1620 1730 1750 1970 2050 2150 2250
Width mm 1450 1520 1550 1620 1820 2070 2120 2200
Height mm 1520 1560 1620 1760 1970 2020 2100 2190
Fuller Earth Regeneration Filter(φ175*885mm) 1 2 3 3 4 4 5 6



Oil Data After Treatment

Breakdown Voltage (Dielectric Strength) ≥75 KV-85KV
Gas Content ≤0.1%
Impurities Degree (Filtration precision) ≤1 micron (no free carbon)
Moisture (water content) ≤ 3 PPM
Flash Point ≥145℃
Water-soluble Acid (PH) ≥5.5
Acid Value ≤0.01 mg koH/g
Dielectric Loss Factors tgδ (90℃) % ≤0.001
Cleanliness ≤NAS 1638 Grade 5
