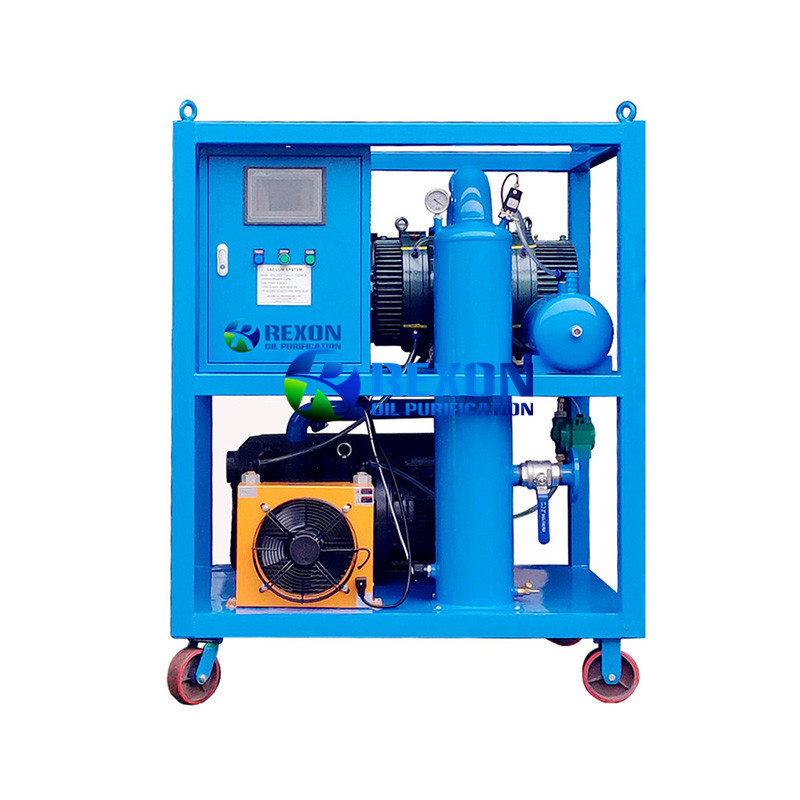

Transformer Vacuuming system and Vacuum Pumping Set RNVS Series
  • Transformer Vacuuming system and Vacuum Pumping Set RNVS Series
  • Transformer Vacuuming system and Vacuum Pumping Set RNVS Series
  • Transformer Vacuuming system and Vacuum Pumping Set RNVS Series

Transformer Vacuuming system and Vacuum Pumping Set RNVS Series

Place of Origin China
Brand Name REXON
Certification CE, ISO, SGS, CCC
Model Number RNVS Series
Product Details
Function:
Transformer Vacuum Pumping
Capacity:
253~2050M3/H
Power Supply:
380V, 3Phase, 50HZ Or As Required
Vacuum Stage:
Double ( Vacuum Pump+Roots Pump)
Ultimate Vacuum Degree:
3~5 Pa
Optional Items:
PLC, LEYBOLD Pirani Vacuum Meter
Material:
Carbon Steel
Colour:
White, Blue, Etc.
Warranty:
2 Years
Product Description

Application

RNVS series transformer vacuuming system | vacuum pump set is a new type of vacuuming equipment developed and produced by REXON company. It is widely used in the vacuuming process in the production, installation and maintenance of many electric power equipment, like electric power transformer, capacitor etc. It is also used in the technical process of industrial production, such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc. It can produce a very high vacuum pressure with high efficiency and fast speed for transformers to satisfy the requirements.



Advantage

As a basic required vacuum equipment for power transformers, RNVS transformer vacuuming system can offer high efficiency vacuum evacuating, vacuum injection and vacuum oiling for transformers. It takes powerful vacuum system to supply sufficient vacuum pressure to transformers, the vacuum system is combined of a big model vacuum pump and high efficient roots vacuum pump, which is like a high efficient air compressor. Besides this, REXON transformer vacuuming system equip with the digital vacuum meter which can detect very precise vacuum degree for the running transformer and the machine, not like the normal mechanical type vacuum gauge which can not really detect the precise vacuum degree for the transformers. So RNVS vacuuming system is the perfect vacuuming equipment for transformer vacuum evacuation and vacuum degree reading, observing, maintaining



Technical Parameters

Technical Parameter Model RNVS-70 Model RNVS-150 Model RNVS-300 Model RNVS-600

---Total Vacuum

Pumping Capacity

253m3/h 505m3/h 1000m3/h 2050m3/h





---First Stage

Rotary Vacuum Pump

Origin & Brand & Model









---Pumping Capacity



Option A:

China JOYSUN

Model X-63

Option A:

China JOYSUN Model X-100

Option A:

China JOYSUN Model X-200

Option A:

China JOYSUN

Model X-300

Option B:

Germany

ATLAS: GVS-65

Or LEYBOLD: SV-65





65m3/h



Option B:

Germany

ATLAS: GVS-100

Or LEYBOLD: SV-100





100m3/h

Option B:

Germany

ATLAS: GVS-200

Or LEYBOLD: SV-200





200m3/h

Option B:

Germany

ATLAS: GVS-300

Or LEYBOLD: SV-300





300m3/h



---Second Stage Pump

Roots Vacuum Pump Origin & Brand & Model



---Pumping Capacity





JRP-250

Brand: China

JOYSUN



253m3/h





JRP-500

Brand: China

JOYSUN



505m3/h





JRP-1000

Brand: China

JOYSUN



1000m3/h





JRP-2000

Brand: China

JOYSUN



2050m3/h



Ultimate Vacuum Degree

(Pa)



3~5



Depends on Roots Pump/Booster Model

Total Electric Power (kw) 2.6 5 9 11.5
Power Supply 380V (3phase, 4wires), 50Hz, – or as per your requirement

Vacuuming Connection Port Diameter

(mm)

DN32 DN40 DN50 DN65

Overall Dimensions

(m)

1.20×1.10×1.51 1.32×1.02×1.57 1.37×1.07×1.61 1.77×1.30×1.92
