Automatic Interfacial Tension Tester
  • Automatic Interfacial Tension Tester

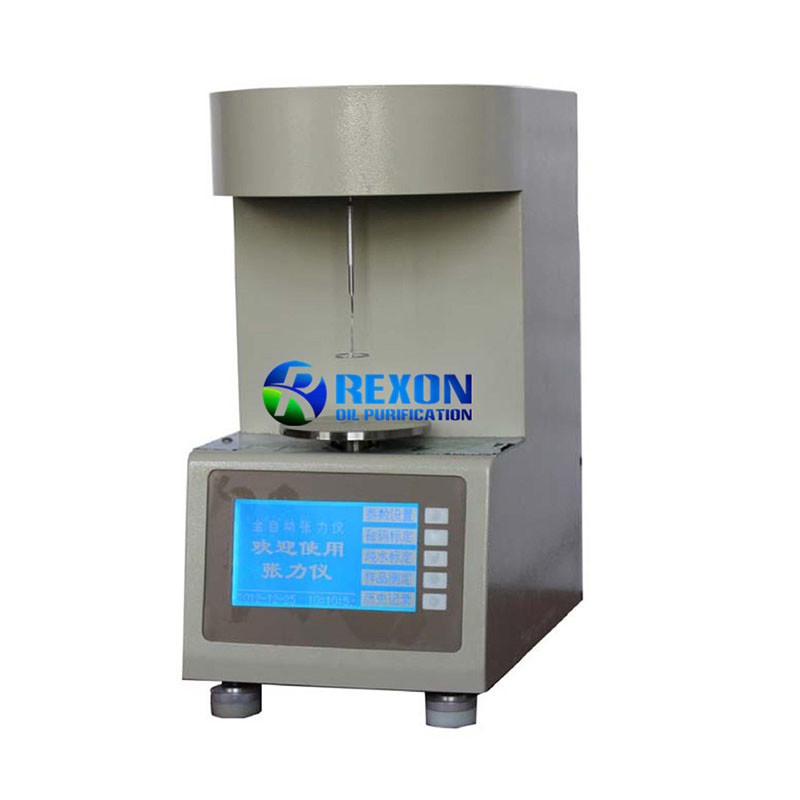

Automatic Interfacial Tension Tester

Place of Origin China
Brand Name REXON
Certification CE, ISO, SGS, CCC
Model Number Series RNIT
Product Details
Function:
Interfacial Tension Testing
Measurement Range:
0-200mN/m
Accuracy:
0.1%±0.1 MN/m
Power Supply:
AC220V±20%,50HZ±10%
Precision:
0.1mN/m
Sensibility:
0.1mN/m
Dimension:
200×300×330mm
Weight:
6Kgs
Guarantee Period:
2 Years
Product Description

Description

Intermolecular forces formed liquid surface tension. Numbers of tension reflect on liquid sample’s physics and chemical properties, it is one of the most important index to product quality. RNIT automatic interfacial tension tester apply to GB/T6541,it can test kinds of liquid surface tension and boundary surface tension. this method sample and accuracy,so it’s used widely.



Features

It used electromagnetic force-balance type transducer, improving the accuracy of the measurement.
Demarcated one point and you can adjust the instrument, and it's very convenient.The instrument can show current weight values and tension equivalence. The instrument can revise the test result automatically. Use high-quality screen,the life of screen extended. The instrument can storage 255 records. The instrument has a mini- printer,you can print the test result any time. The instrument has RS232 interface equipment, it can connect to computer, and it is convenient for data processing.



Technical Parameters

Measuring range: 0-200mN/m
Accuracy: 0.1%( test result)±0.1 mN/m
Precision: 0.1mN/m
Sensibility: 0.1mN/m
Mains voltage: AC220V±20%,50HZ±10%
Maximum power dissipation: 20W
Suit ambient temperature: 10~30℃(25℃the best)
Suit ambient humidity: ≤85%RH
Overall dimensions: 200×300×330(mm)
Weight: 6kgs
