Vacuum Lubricating Oil Purifier
>
|
|
| Place of Origin | China |
| Brand Name | REXON |
| Certification | CE, ISO, SGS, CCC |
| Model Number | TYA-20(1200LPH) |
Application

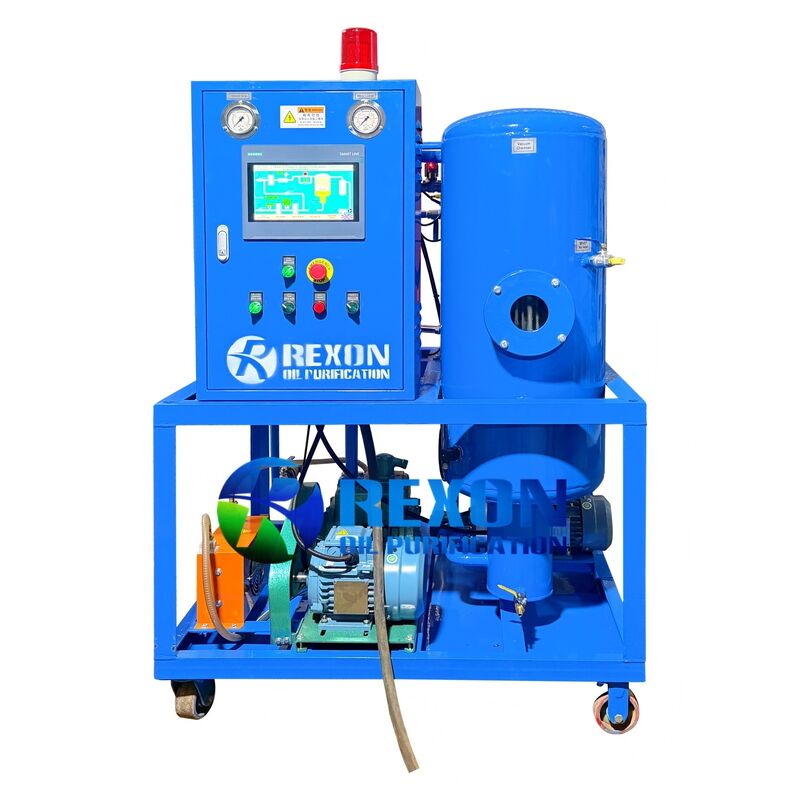

REXON TYA-20 (1200 LPH) is a fully automatic lubricating oil purifier and filtration system specially designed for industrial lubricating oils, particularly high-viscosity lubricants. It combines Siemens PLC automatic control, vacuum dehydration and degassing, and precision filtration to effectively remove moisture, air, particles, oxidation products, and other contaminants, helping restore oil cleanliness and maintain reliable lubrication performance.
For high-viscosity oil applications, the filtration configuration can be customised according to the actual oil viscosity and operating conditions. Where appropriate, the conventional water-separation filter element can be omitted to reduce flow resistance and the risk of filter blockage, helping maintain stable oil flow during continuous purification.
REXON TYA-20 lubricating oil purifier is suitable for purifying hydraulic oil, gear oil, mechanical oil, and other industrial lubricating oils used in power generation, mining, metallurgy, manufacturing, heavy machinery, and other industrial applications. It can be used as a standalone purification unit or integrated into an existing lubrication system for online circulation filtration.
With fully automatic operation and a practical maintenance design, the system is ideal for applications requiring continuous oil purification with minimal operator intervention. By maintaining cleaner oil and enabling repeated oil reuse, REXON TYA-20 lubricating oil purifier helps extend lubricant and equipment service life, reduce oil consumption and maintenance requirements, and minimise equipment downtime.
Features
1. Fully Automatic Siemens PLC Control. The REXON TYA-20 is equipped with a Siemens PLC and touch-screen control system for simple and reliable operation. The system automatically controls the purification process and monitors key parameters such as oil temperature, filtration pressure, vacuum status, and oil level. Automatic alarms and safety protection enable the machine to respond to abnormal conditions and shut down when necessary, significantly reducing the need for continuous operator supervision.
2. Customised Filtration for High-Viscosity Lubricating Oil. The filtration system can be customised according to the viscosity and operating characteristics of the customer's oil. For high-viscosity lubricants, the conventional water-separation filter element can be omitted where appropriate, helping reduce flow resistance and the risk of premature filter blockage. This customised configuration is designed to maintain stable oil flow and reliable filtration performance during continuous operation.
3. High-Precision Multi-Stage Filtration. High-quality stainless steel filter elements with excellent mechanical strength, thermal resistance, and corrosion resistance provide efficient removal of fine particulate contaminants. The filter elements offer high dirt-holding capacity and long service life, helping maintain stable filtration performance while reducing the frequency of filter replacement.
4. Efficient Vacuum Dehydration and Degassing. The advanced vacuum purification system uses multi-stage evaporation and separation technology to rapidly remove free water, micro-moisture, and gases from lubricating oil. An efficient condensation and cooling system supports stable vacuum operation and helps improve the overall dehydration and degassing performance of the purifier.
5. Reliable Components and Safety Protection. The TYA-20 oil purifier uses high-quality vacuum pumps, oil pumps, motors, valves, seals, stainless-steel components, and heating-system connections selected for reliable long-term operation. A comprehensive electrical safety and automatic protection system monitors the machine during operation and provides automatic shutdown in the event of abnormal conditions.
6. Online Circulation Filtration. The purifier can be connected to an existing lubrication system for online circulation filtration, allowing contaminated oil to be continuously purified and returned to the equipment. This makes it possible to maintain oil cleanliness during normal equipment operation and provides a practical solution for continuous industrial lubricating oil management.
Advantages
1. Stable Performance for High-Viscosity Oil
The customised system configuration is designed around the actual characteristics of high-viscosity lubricating oil. It helps maintain stable oil flow during continuous operation while reducing the risk of excessive flow resistance and premature filter blockage.
2. Lower Operator Workload
Once the purification parameters are set, the system can operate with minimal manual intervention. This reduces routine operator workload and makes the purifier suitable for long-duration or continuous industrial operation.
3. Easier Maintenance and Lower Downtime
The practical system design makes routine inspection and maintenance straightforward. Easy filter replacement and reliable operation help reduce maintenance time and keep the purification system available when it is needed.
4. Longer Oil Life and Lower Operating Costs
By maintaining lubricating oil in a cleaner and drier condition, REXON TYA-20 fully automatic lubricating oil purifier helps extend oil service life and reduce unnecessary oil replacement. This can lower fresh oil consumption, waste oil generation, and overall lubrication-related operating costs.
Technical Parameters
| Item |
Model Unit |
TYA-10 | TYA-20 | TYA-30 | TYA-50 | TYA-100 | TYA-150 | TYA-200 | TYA-300 |
| Flow rate | L/Hr | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Vacuum degree | Mpa | -0.06 ~ - 0.095 | |||||||
| Working Pressure | Mpa | ≤0.4 | |||||||
| Temperature Degree | ℃ | 0 ~ 100 | |||||||
| Power Supply | 380V, 3Phase, 50HZ or as requirement | ||||||||
| Working noise | DB (A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 |
| Electric heating Power | KW | 10 | 15 | 24 | 30 | 60 | 90 | 120 | 150 |
| Total electric Power | KW | 11.5 | 16.5 | 25.65 | 32 | 63.5 | 97 | 128 | 160 |
| Inlet (outlet) Caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф50 | Ф50 | Ф60 |
| Size | mm |
1260x900 x1500 |
1260x900 x1600 |
1500x1050 x1650 |
1600x1150 x1700 |
1750x1250 x1800 |
1900x1600 x1950 |
1900x1700 x2000 |
2100x1700 x2100 |
| Weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 | 1500 |
